Product Summary

The PCA82C250T is the interface between a CAN protocol controller and the physical bus. The device provides differential transmit capability to the bus and differential receive capability to the CAN controller.

Parametrics

Absolute maximum ratings: (1)supply voltage:-0.3V to +9.0V; (2)DC voltage at pins 1, 4, 5 and 8:-0.3V to VCC + 0.3 V; (3)DC voltage at pins 6 and 7:-8.0V to +18.0V; (4)transient voltage at pins 6 and 7 see:-150V to +100V; (5)storage temperature:-55℃ +150℃; (6)ambient temperature:-40℃ +125℃; (7)virtual junction temperature:-40℃ +150℃.

Features

Features: (1)Fully compatible with the "ISO 11898" standard; (2)High speed (up to 1 MBd); (3)Bus lines protected against transients in an automotive environment; (4)Slope control to reduce Radio Frequency Interference (RFI); (5)Differential receiver with wide common-mode range for high immunity against ElectroMagnetic Interference (EMI); (6)Thermally protected; (7)Short-circuit proof to battery and ground; (8)Low-current Standby mode; (9)An unpowered node does not disturb the bus lines; (10)At least 110 nodes can be connected.

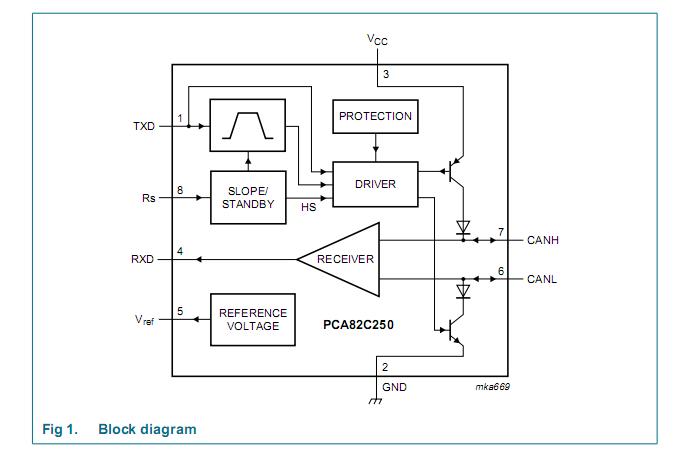

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
PCA82C250T/N,112
PCA82C250T/N,112


IC CAN CNTRL INTERFACE SOT96-1

Data Sheet

Negotiable
PCA82C250T/N,115
PCA82C250T/N,115


IC CAN CNTRL INTERFACE SOT96-1

Data Sheet

Negotiable
PCA82C250T/N4,112
PCA82C250T/N4,112

NXP Semiconductors

Network Controller & Processor ICs HI SPD CAN TRANSCVR

Data Sheet

Negotiable
PCA82C250T/N4,118
PCA82C250T/N4,118

NXP Semiconductors

Network Controller & Processor ICs HI-SPEED CAN XCVR

Data Sheet

Negotiable
PCA82C250T/N4,115
PCA82C250T/N4,115

NXP Semiconductors

Network Controller & Processor ICs HI SPD CAN TRANSCVR

Data Sheet

Negotiable
PCA82C250T/N,118
PCA82C250T/N,118


IC CAN CNTRL INTERFACE SOT96-1

Data Sheet

Negotiable
PCA82C250T/YM,115
PCA82C250T/YM,115

NXP Semiconductors

Network Controller & Processor ICs CAN CONTROLLER INTERFACE

Data Sheet

0-1: $0.65
1-25: $0.61
25-100: $0.50
100-250: $0.46
PCA82C250T/YM,112
PCA82C250T/YM,112

NXP Semiconductors

Network Controller & Processor ICs CAN CONTROLLER INTERFACE

Data Sheet

0-1490: $0.53
1490-3000: $0.51
3000-6000: $0.49
