Product Summary

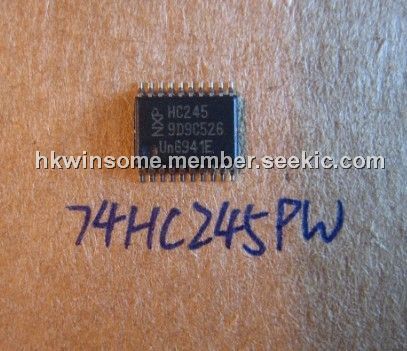

The 74HC245PW is a high-speed Si-gate CMOS device and is pin compatible with Low-Power Schottky TTL (LSTTL). It is an octal transceiver featuring non-inverting 3-state bus compatible outputs in both send and receive directions.
Parametrics
Absolute maximum ratings: (1)supply voltage:-0.5V to +7V; (2)input diode current(VI < -0.5V or VI >VCC+0.5V):±20mA; (3)output diode current(VO < -0.5 V or VO >VCC+0.5V):±20mA; (4)output source or sink current(VO=-0.5V to VCC+0.5V):±35mA; (5)VCC or GND current:±70mA; (6)storage temperature:-65℃ +150℃.
Features
Features: (1)Octal bidirectional bus interface; (2)Non-inverting 3-state outputs; (3)Multiple package options; (4)Complies with JEDEC standard no. 7A; (5)Specified from -40℃ to +85℃ and from -40℃ to +125℃.

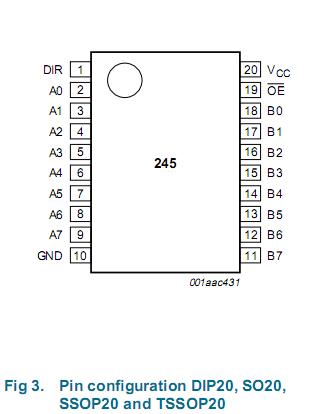

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 74HC245PW,112 |
NXP Semiconductors |
Bus Transceivers OCTAL BUS XCVR 3ST |
Data Sheet |
|
|
||||||||||||
|
74HC245PW,118 |
NXP Semiconductors |
Bus Transceivers OCTAL TRANSCEIVER |
Data Sheet |
|
|
||||||||||||
|
74HC245PW-T |
NXP Semiconductors |
Bus Transceivers OCTAL TRANSCEIVER |
Data Sheet |
Negotiable |
|
||||||||||||
