Product Summary

The MC1413DR2G series input resistor is well suited for systems utilizing a 5.0 V TTL or CMOS Logic.

Parametrics

Absolute maximum ratings: (1)Output Voltage: 50 V; (2)Input Voltage: 30 V; (3)Collector Current-Continuous: 500 mA; (4)Base Current-Continuous: 25 mA; (5)Operating Ambient Temperature Range: -20 to +85 ℃; (6)Storage Temperature Range: -55 to +150 ℃; (7)Junction Temperature: 150 ℃; (8)Thermal Resistance, Junction.to.Ambient: Case 648, P Suffix: 67 ℃/W, Case 751B, D Suffix: 100 ℃/W; (9)Thermal Resistance, Junction-to-Case: Case 648, P Suffix: 22 ℃/W, Case 751B, D Suffix: 20 ℃/W; (10)Human Body Model (HBM): 2000 V; (11)Machine Model (MM): 400 V; (12)Charged Device Model (CDM): 1500 V.

Features

Features: Pb-Free Packages are Available.

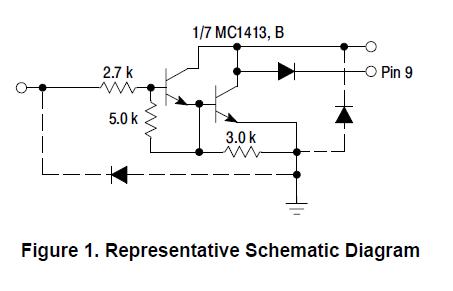

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

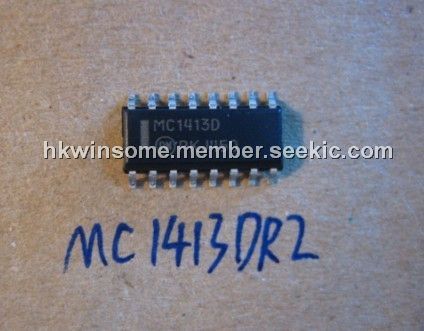

MC1413DR2G
MC1413DR2G
ON Semiconductor
Transistors Darlington High Voltage High Current Darlington
Data Sheet
0-1: $0.32
1-25: $0.27
25-100: $0.19
100-500: $0.16
