Product Summary

The LM2904DR consists of two independent, high-gain, frequency-compensated operational amplifiers designed to operate from a single supply over a wide range of voltages. Operation from split supplies also is possible if the difference between the two supplies is 3 V to 32 V (3 V to 26 V for the LM2904), and VCC is at least 1.5 V more positive than the input common-mode voltage. The low supply-current drain is independent of the magnitude of the supply voltage.

Parametrics

Absolute maximum ratings: (1)Supply voltage, VCC: ±13 or 26 V; (2)Differential input voltage, VID: ±26 V; (3)Input voltage, VI (either input): -0.3 to 26 V; (4)Duration of output short circuit (one amplifier) to ground at (or below) 25℃ free-air temperature (VCC ≤ 15 V): Unlimited Unlimited; (5)Operating virtual junction temperature, TJ: 150 ℃; (6)Case temperature for 60 seconds FK package: 260 ℃; (7)Lead temperature 1,6 mm (1/16 inch) from case for 60 seconds JG package: 300 ℃; (8)Storage temperature range, Tstg: -65 to 150 ℃.

Features

Features: (1)Wide Supply Range: Single Supply: 3 V to 32 V, or Dual Supplies: ±1.5 V to ±16 V; (2)Low Supply-Current Drain, Independent of Supply Voltage: 0.7 mA Typ; (3)Common-Mode Input Voltage Range Includes Ground, Allowing Direct Sensing Near Ground; (4)Low Input Bias and Offset Parameters; (5)Differential Input Voltage Range Equal to Maximum-Rated Supply Voltage: 32 V; (6)Open-Loop Differential Voltage Amplification: 100 V/mV Typ; (7)Internal Frequency Compensation.

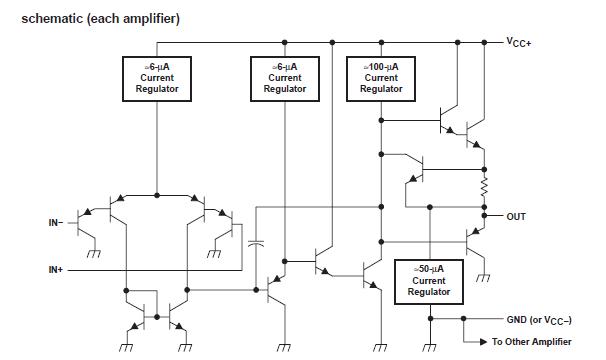

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

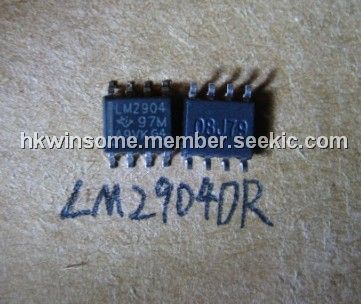

LM2904DR
LM2904DR

Texas Instruments

Operational Amplifiers - Op Amps Dual GP Op Amp

Data Sheet

0-1: $0.23
1-25: $0.15
25-100: $0.13
100-250: $0.11
LM2904DR2
LM2904DR2

ON Semiconductor

Operational Amplifiers - Op Amps 3-26V Dual Lo PWR

Data Sheet

Negotiable
LM2904DR2G
LM2904DR2G

ON Semiconductor

Operational Amplifiers - Op Amps 3-26V Dual Lo PWR -40 to 105deg C

Data Sheet

0-1: $0.28
1-25: $0.19
25-100: $0.15
100-500: $0.10
LM2904DRG3
LM2904DRG3

Texas Instruments

Operational Amplifiers - Op Amps Dual Op Amp

Data Sheet

0-1: $0.25
1-25: $0.16
25-100: $0.13
100-250: $0.11
LM2904DRG4
LM2904DRG4

Texas Instruments

Operational Amplifiers - Op Amps Dual General-Purpose Op Amp

Data Sheet

0-1: $0.13
1-25: $0.11
25-100: $0.10
100-250: $0.09
LM2904DRE4
LM2904DRE4

Texas Instruments

Operational Amplifiers - Op Amps Dual General-Purpose Op Amp

Data Sheet

0-1: $0.18
1-25: $0.13
25-100: $0.11
100-250: $0.10
