Product Summary

The 74HC245D is a high-speed Si-gate CMOS device and is pin compatible with Low-Power Schottky TTL (LSTTL). It is an octal transceiver featuring non-inverting 3-state bus compatible outputs in both send and receive directions.

Parametrics

Absolute maximum ratings: (1)supply voltage:-0.5V to +7V; (2)input diode current(VI < -0.5V or VI >VCC+0.5V):±20mA; (3)output diode current(VO < -0.5 V or VO >VCC+0.5V):±20mA; (4)output source or sink current(VO=-0.5V to VCC+0.5V):±35mA; (5)VCC or GND current:±70mA; (6)storage temperature:-65℃ +150℃.

Features

Features: (1)Octal bidirectional bus interface; (2)Non-inverting 3-state outputs; (3)Multiple package options; (4)Complies with JEDEC standard no. 7A; (5)Specified from -40℃ to +85℃ and from -40℃ to +125℃.

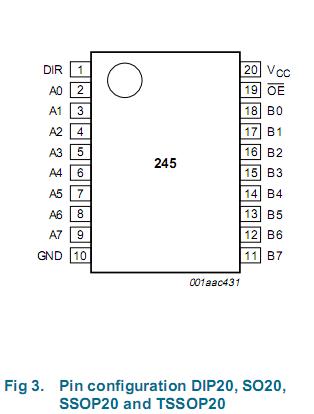

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

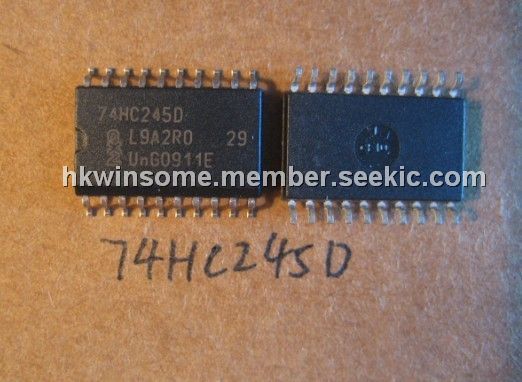

74HC245D
74HC245D
Other

Data Sheet
Negotiable
74HC245D,652
74HC245D,652
NXP Semiconductors
Bus Transceivers OCTAL BUS XCVR 3ST
Data Sheet
0-1: $0.09
1-25: $0.08
25-100: $0.08
100-250: $0.07
74HC245DB,118
74HC245DB,118
NXP Semiconductors
Bus Transceivers OCTAL XCVR 3-STATE
Data Sheet
0-1: $0.19
1-25: $0.18
25-100: $0.15
100-250: $0.10
74HC245D,653
74HC245D,653
NXP Semiconductors
Bus Transceivers OCTAL TRANSCEIVER 3-STATE
Data Sheet
0-1: $0.26
1-25: $0.22
25-100: $0.18
100-250: $0.15
74HC245DB
74HC245DB
NXP Semiconductors
Bus Transceivers OCTAL TRANSCVR 3-S
Data Sheet
Negotiable
74HC245DB,112
74HC245DB,112

IC TRANSCVR TRI-ST 8BIT 20SSOP
Data Sheet
0-3696: $0.08
74HC245DTR2G
74HC245DTR2G
ON Semiconductor
Bus Transceivers OCTAL 3ST NONINVERT BUS TRANSCEIVER
Data Sheet
0-2500: $0.08
2500-3000: $0.08
3000-5000: $0.08
5000-10000: $0.07
74HC245DB-T
74HC245DB-T
NXP Semiconductors
Bus Transceivers OCTAL XCVR 3-STATE
Data Sheet
Negotiable
