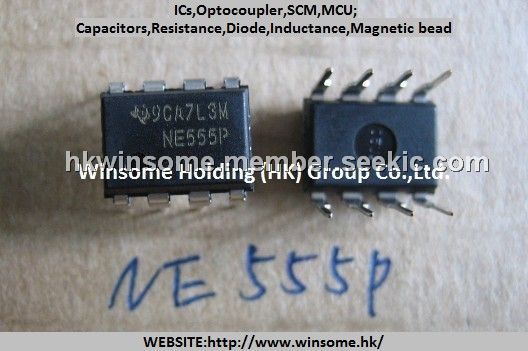

Product Summary

The NE555P is a precision timing circuit capable of producing accurate time delays or oscillation.

Parametrics

Absolute maximum ratings: (1)Supply voltage:18 V; (2)Input voltage:VCC; (3)Output current:±225 mA; (4)Package thermal impedance:85℃/W; (5)Operating virtual junction temperature:150℃; (6)Storage temperature range:–65℃ to 150℃.

Features

Features: (1)Timing From Microseconds to Hours ; (2)Adjustable Duty Cycle; (3)Astable or Monostable Operation ; (4)TTL-Compatible Output Can Sink or Source up to 200 mA.

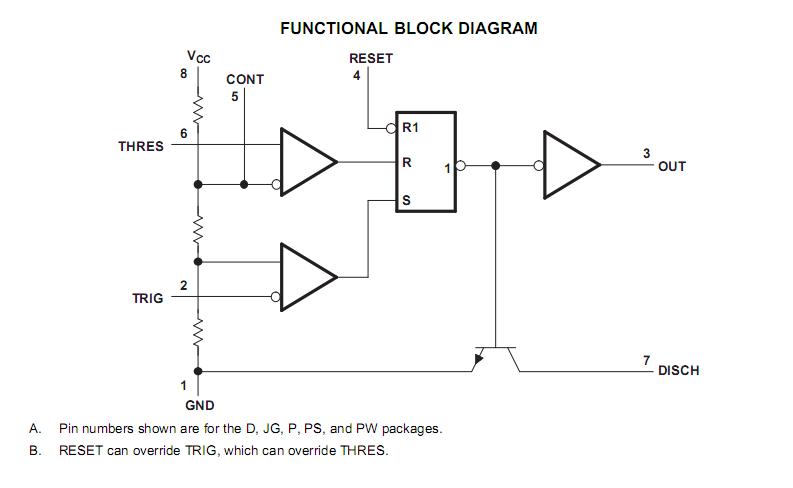

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
NE555P
NE555P
Texas Instruments
Timers & Support Products Precision
Data Sheet
0-1: $0.23
1-25: $0.17
25-100: $0.13
100-250: $0.10
