Product Summary

The LM2902DT is a Low Power Quad Operational Amplifier. It consists of four independent, high gain, internally frequency compensated operational amplifiers designed especially for automotive and industrial control systems.

Parametrics

Absolute maximum ratings: (1)Supply Voltage:±16V to 33V; (2)Differential Input Voltage:+32 V; (3)Input Voltage:-0.3 to +32 V; (4)Output Short-circuit to Ground:Infinite; (5)Power Dissipation:400mW; (6)Input Current:50mA; (7)Operating Free-Air Temperature Range:-40℃ to +125℃; (8)Storage Temperature Range:-65℃ to +150℃; (9)Thermal Resistance Junction to Ambient:100℃/W; (10)HBM: Human Body Model:0.5 kV; (11)MM: Machine Model:150 V; (12)CDM: Charged Device Model:1500 V.

Features

Features: (1)Wide gain bandwidth: 1.3MHz ; (2)Input common-mode voltage range includes ground; (3)Large voltage gain: 100dB; (4)Very low supply current per amp: 375μA; (5)Low input bias current: 20nA; (6)Low input offset current: 2nA; (7)Wide power supply range:Single supply: +3V to +30V, Dual supplies: ±1.5V to ±15V.

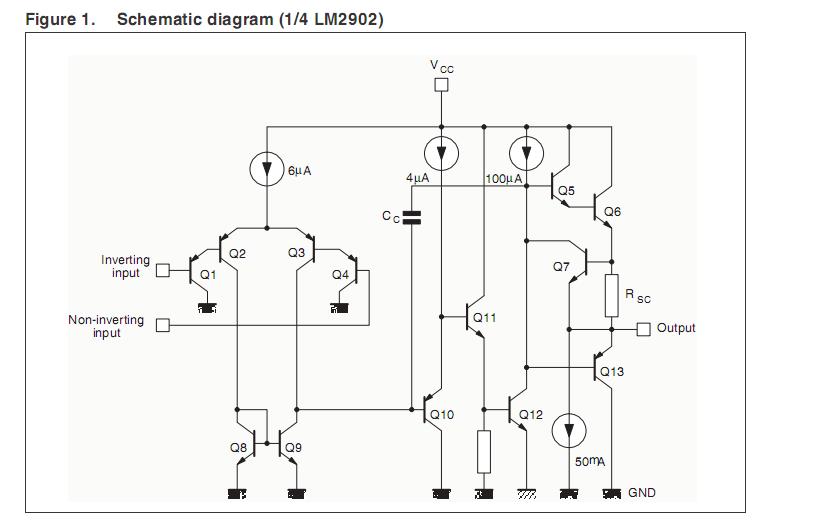

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
LM2902DT
LM2902DT
STMicroelectronics
Operational Amplifiers - Op Amps Quad Low Power
Data Sheet
0-1: $0.23
1-10: $0.16
10-100: $0.13
100-250: $0.11
